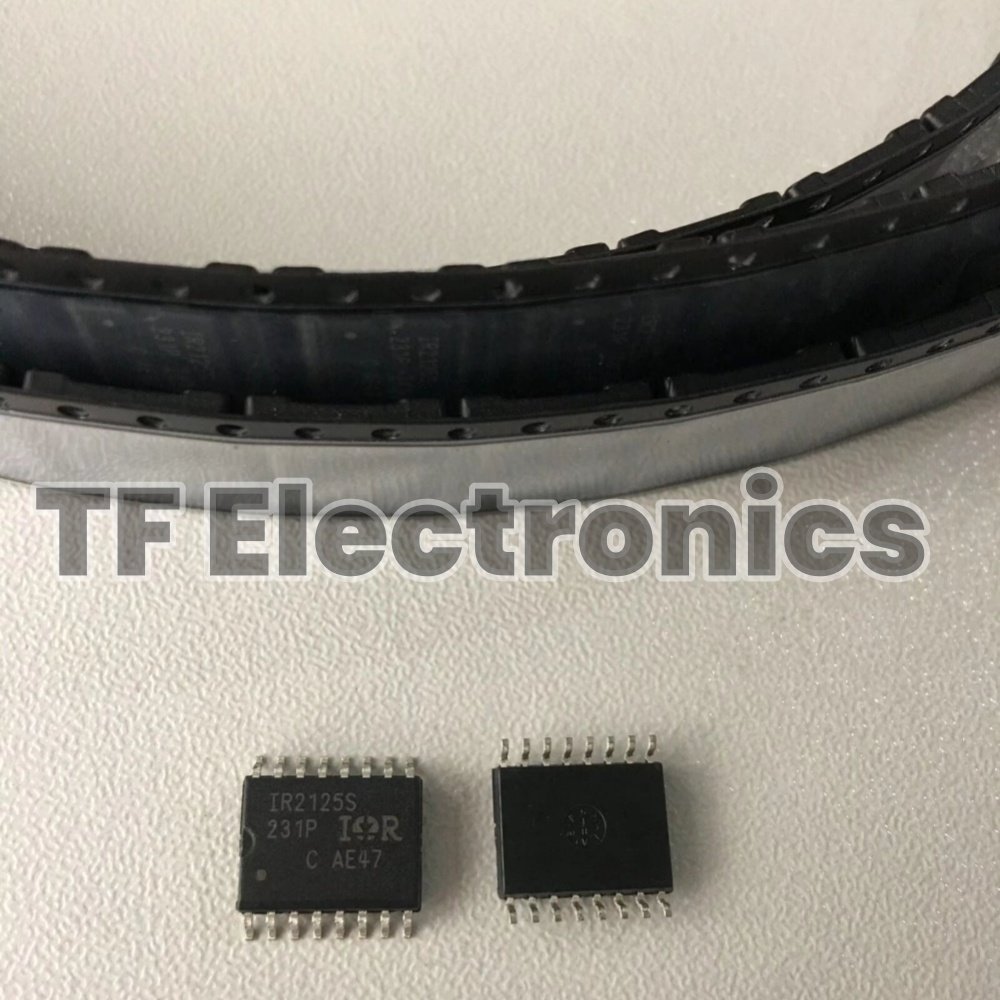

IR2125STRPBF
- Brand New and Original.
- Fast Delivery and Low MOQ.
- 90 Days Guarantee for Money Back.
- One Stop Electronic Components Service.
- PCB & PCB Assembly.
- 7/24 Hours Service and Worldwide Shipping.
Email: Sales@tf-elec.com ( Datasheet and Price)
- New and Original 100%
- 90 Days Money Refund
- 70000+ Various Stocks
- Fast Delivery within 3-5 days.
Description
| Part Number | IC GATE DRVR HIGH-SIDE 16SOIC IR2125STRPBF |
| Datasheet | sales@tf-elec.com |
| Manufacturer: | Infineon |
| Product Category: | Gate Drivers |
| Product: | IGBT, MOSFET Gate Drivers |
| Type: | High-Side, Low-Side |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-16 |
| Number of Drivers: | 1 Driver |
| Number of Outputs: | 1 Output |
| Output Current: | 1 A |
| Supply Voltage – Min: | 0 V |
| Supply Voltage – Max: | 18 V |
| Rise Time: | 43 ns |
| Fall Time: | 26 ns |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 125 C |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Brand: | Infineon Technologies |
| Features: | Synchronous |
| Height: | 2.65 mm |
| Length: | 10.5 mm |
| Logic Type: | CMOS, TTL |
| Maximum Turn-Off Delay Time: | 200 ns |
| Maximum Turn-On Delay Time: | 170 ns |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 1.2 mA |
| Operating Supply Voltage: | 12 V to 18 V |
| Output Voltage: | 12 V to 18 V |
| Pd – Power Dissipation: | 1.25 W |
| Product Type: | Gate Drivers |
| Propagation Delay – Max: | 270 ns |
| Shutdown: | Yes |
| Factory Pack Quantity: | 1000 |
| Subcategory: | PMIC – Power Management ICs |
| Technology: | Si |
| Width: | 7.6 mm |
| Unit Weight: | 0.023492 oz |
