HM4100F-H-5VDC
- Brand New and Original.
- Fast Delivery and Low MOQ.
- 90 Days Guarantee for Money Back.
- One Stop Electronic Components Service.
- PCB & PCB Assembly.
- 7/24 Hours Service and Worldwide Shipping.
Email: Sales@tf-elec.com ( Datasheet and Price)
- New and Original 100%
- 90 Days Money Refund
- 70000+ Various Stocks
- Fast Delivery within 3-5 days.
Description

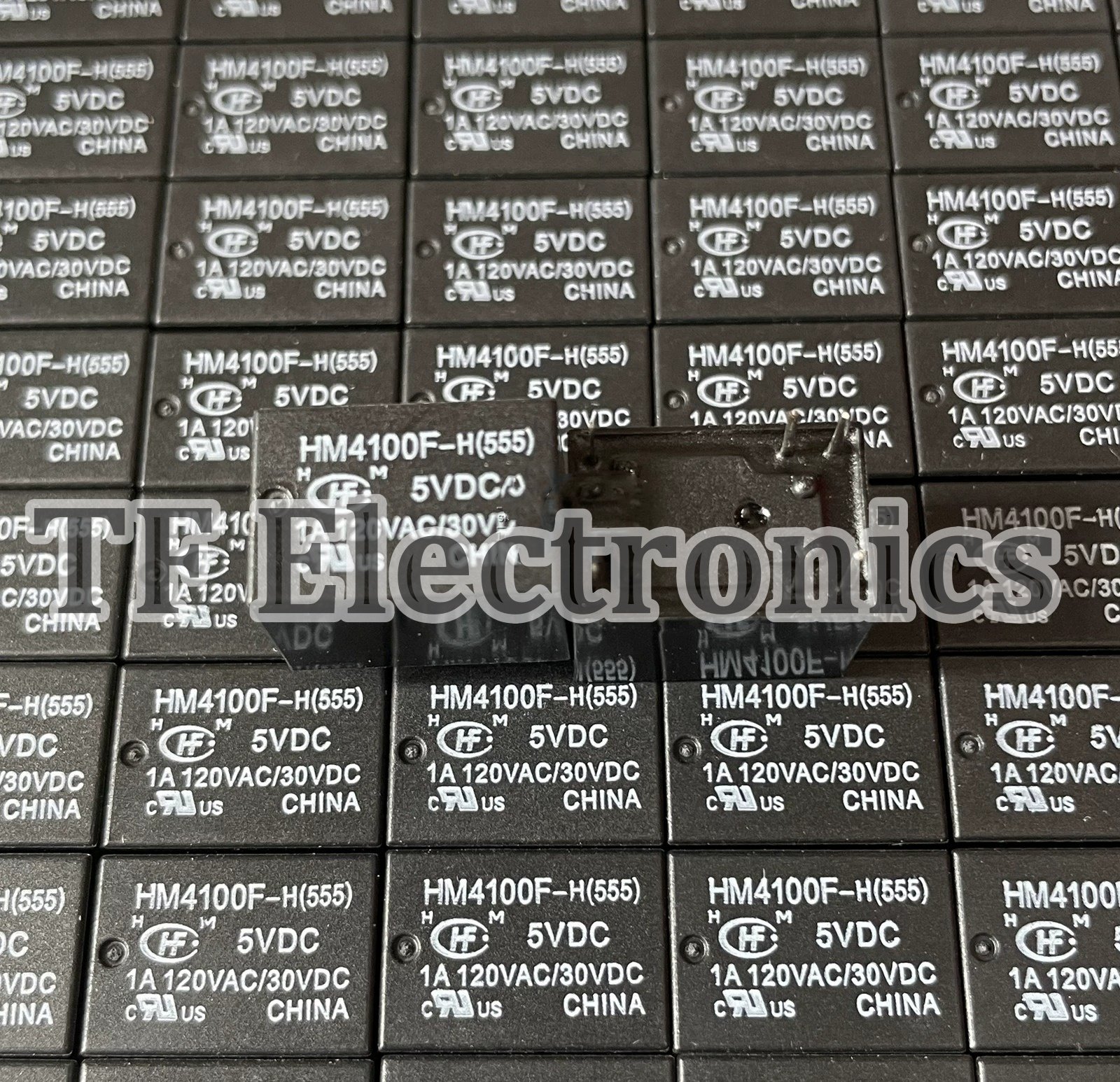

The HM4100F-H-5VDC is a relay manufactured by Hongfa, commonly used in various electronic applications. Here are the key specifications and details based on available datasheets:
General Specifications
- Type: SPDT (Single Pole Double Throw)
- Coil Voltage: 5 VDC
- Max Contact Current: 2 A
- Contact Configuration: 1 pair of switching contacts
Electrical Characteristics
- Coil Power Consumption:
- High (H): 200 mW
- Normal (N): 360 mW
- Low (B): 450 mW
- Contact Resistance: 100 mΩ
- Dielectric Strength:
- Between coil and contacts: 500 Vrms for 1 minute
- Between open contacts: 500 Vrms for 1 minute
Mechanical Characteristics
- Operating Temperature Range: Typically from -40°C to +85°C.
- Life Expectancy:
- Electrical: Up to 100,000 cycles at rated load.
- Mechanical: Up to 10 million cycles.
